Standard bore sizes up to 12" with pressure ratings of up to 3000 PSI, depending on mount and stroke. All Higginson cylinders are available with non-standard options such as stainless steel, high-temp seals or use with exotic fluids. We offer all NFPA mounts in addition to custom mounts, which we proudly manufacture in one of the industry's quickest lead times.
1.5" to 12" Bore
Tie rod mounted cylinders are mounted from the same stress-proof steel tie rods used to compress the head and cap to the barrel. The tie rod mount is simple and economical, as well as functionally excellent in tension applications.

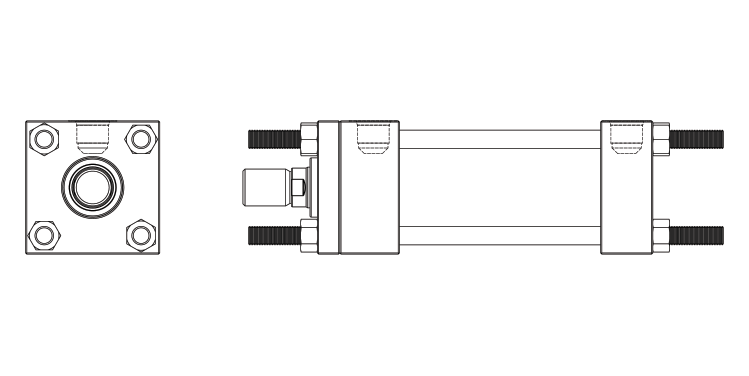

Tie Rods Extended Both Ends Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. MX1 mounts can be used at full pressure in compression or tension applications.

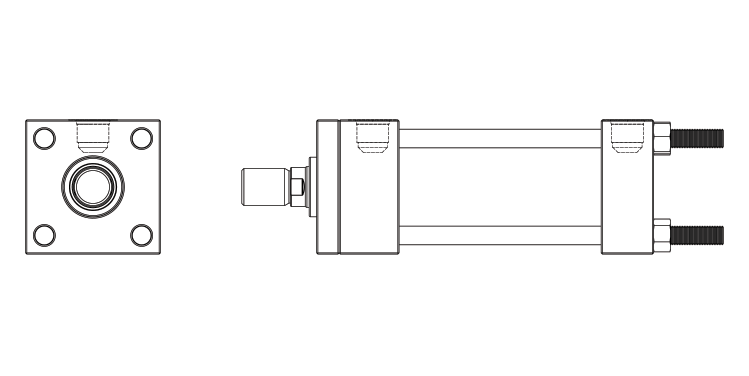

Tie Rods Extended Both Ends Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. MX2 mounts can be used at full pressure in compression or tension applications.

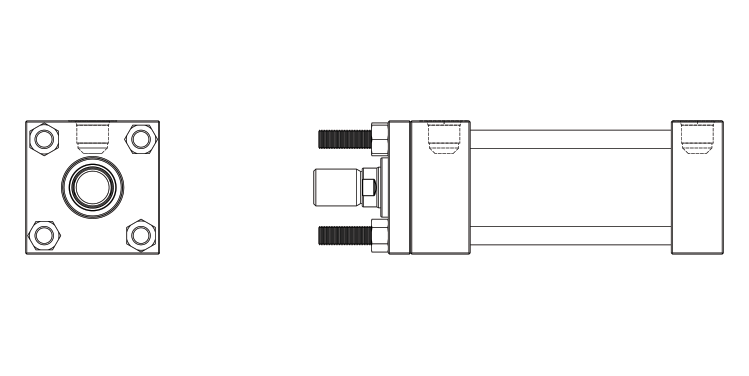

Tie Rods Extended Both Ends Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. MX3 mounts can be used at full pressure in compression or tension applications.
