Standard bore sizes up to 12" with pressure ratings of up to 3000 PSI, depending on mount and stroke. All Higginson cylinders are available with non-standard options such as stainless steel, high-temp seals or use with exotic fluids. We offer all NFPA mounts in addition to custom mounts, which we proudly manufacture in one of the industry's quickest lead times.
1.5" to 12" Bore
Lug & tapped mounted cylinders are mounted to the bottom or side of the head or cap. Lug & tapped mounts must operate at lower pressure on large bore or long stroke cylinders. Thrust keys can help improve the strength of the mount. Consult our experts for more detail.
Side Lug Mount. A fixed mount with force transferred in a straight line. Force is not absorbed along the cylinder centreline. As with most side mount cylinders, MS2 mounts create a rotating moment, requiring a minimum stroke length equal to their bore size. Thrust keys should be used to improve mount strength.

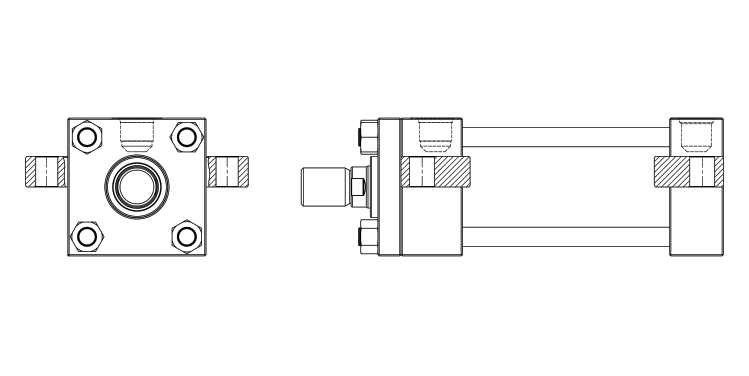

Side Lug Mount. A fixed mount with force transferred in a straight line. Force is absorbed along the cylinder centreline. Centre lugs can be pinned or keyed to improve strength.
Side Tapped Flush Mount. A fixed mount with force transferred in a straight line. Force is not absorbed along the cylinder centreline. As with most side mount cylinders, MS4 mounts create a rotating moment, requiring a minimum stroke length equal to their bore size.
