Standard bore sizes up to 12" with pressure ratings of up to 3000 PSI, depending on mount and stroke. All Higginson cylinders are available with non-standard options such as stainless steel, high-temp seals or use with exotic fluids. We offer all NFPA mounts in addition to custom mounts, which we proudly manufacture in one of the industry's quickest lead times.
1.5" to 12" Bore
Flange mounted cylinders are mounted via square or rectangular flanges attached to the cap. Heavy duty ME6 mounts use extra material on the cap itself for mounting. Flange mounts ensure the thrust force of the cylinder remains in the centre of the rod, as long as there is no rod misalignment.
Rectangular Cap Flange Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. We recommend MF2 mounts are used in compression and mounted with flange face against machine support.

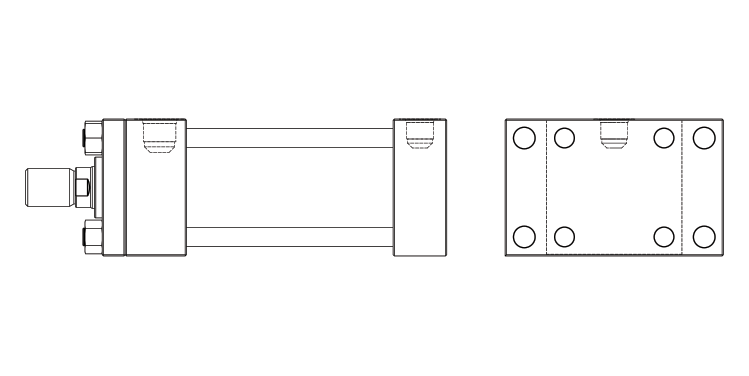

Full Cap Flange Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. ME6 mounts can be used at full pressure in tension or compression applications.
Square Cap Flange Mount. Force is transferred in a straight line, and force is absorbed alone the cylinder centreline. MF6 mounts can be used at full pressure in either tension or compression applications.
