Standard bore sizes up to 12" with pressure ratings of 250 PSI for air and up to 1500 PSI for medium duty hydraulic. All Higginson cylinders are available with non-standard options such as stainless steel, high-temp seals or use with exotic fluids. We offer all NFPA mounts in addition to custom mounts, which we proudly manufacture in one of the industry's quickest lead times.
1.5" to 12" Bore
Tie rod mounted cylinders are mounted from the same stress-proof steel tie rods used to compress the head and cap to the barrel. Tie rods can extend from the head, the cap or both. The MDX is a double rod cylinder containing two rods with a single piston.
Tie Rods Extended Both Ends Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. MX1 mounts can be used at full pressure in compression or tension applications.
Tie Rods Extended Both Ends Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. MX2 mounts can be used at full pressure in compression or tension applications.
Tie Rods Extended Both Ends Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. MX3 mounts can be used at full pressure in compression or tension applications.

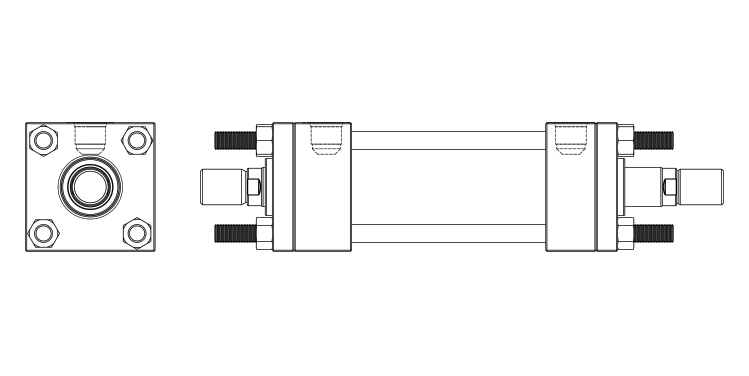

Tie Rods Extended Both Ends Mount. Dual rod cylinder where force is transferred in a straight line, and force is absorbed along the cylinder centreline. MDX mounts can be used at full pressure in compression or tension applications. MDX mounts can be had with tie rods extended on one or both ends.
