Standard bore sizes up to 12" with pressure ratings of 250 PSI for air and up to 1500 PSI for medium duty hydraulic. All Higginson cylinders are available with non-standard options such as stainless steel, high-temp seals or use with exotic fluids. We offer all NFPA mounts in addition to custom mounts, which we proudly manufacture in one of the industry's quickest lead times.
1.5" to 12" Bore Series
Foot & flush mounted cylinders are mounted to the bottom, side or end of the head or cap. Foot & flush mounts must operate at lower pressure on large bore or long stroke cylinders. Thrust keys can help improve the strength of the mount. Consult our experts for more detail.

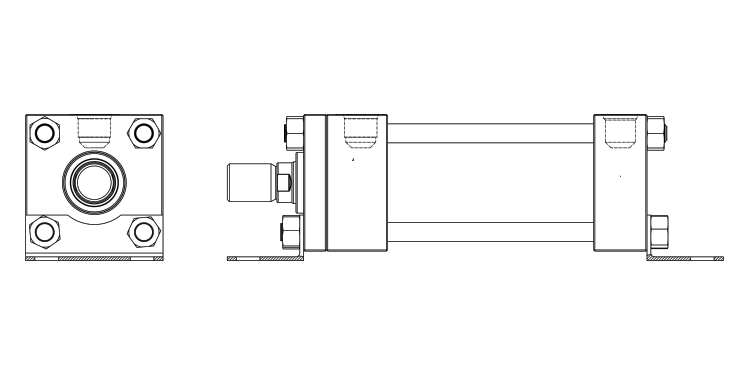

Side End Angle Mount. A fixed mount with force transferred in a straight line. Force is not absorbed along the cylinder centreline. As with most side mount cylinders, MS1 mounts create a rotating moment, requiring a minimum stroke length equal to their bore size. The MS1 is the weakest side mount, and should be limited to less than 500 PSI.

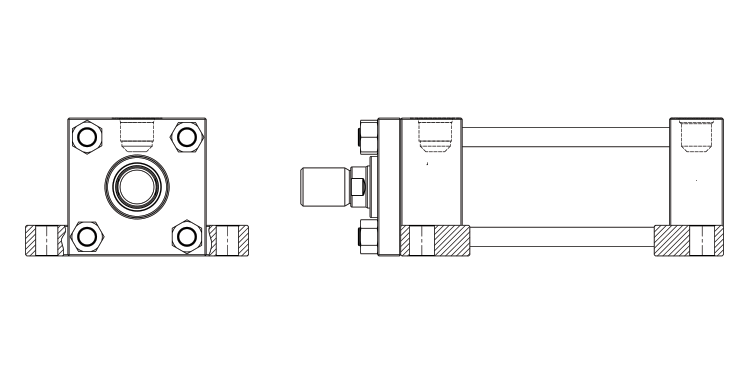

Side Lug Mount. A fixed mount with force transferred in a straight line. Force is not absorbed along the cylinder centreline. As with most side mount cylinders, MS2 mounts create a rotating moment, requiring a minimum stroke length equal to their bore size.

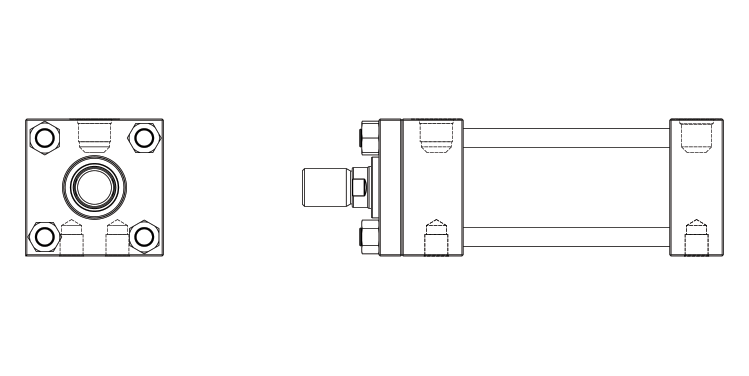

Side Tapped Flush Mount. A fixed mount with force transferred in a straight line. Force is not absorbed along the cylinder centreline. As with most side mount cylinders, MS4 mounts create a rotating moment, requiring a minimum stroke length equal to their bore size.

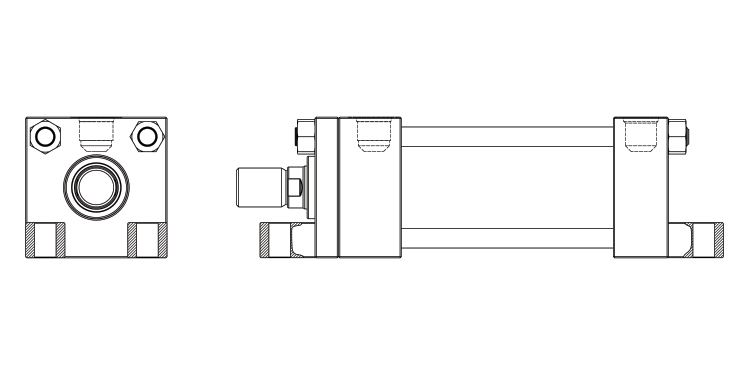

End Lug Mount. A fixed mount with force transferred in a straight line. Force is not absorbed along the cylinder centreline. As with most side mount cylinders, MS7 mounts create a rotating moment, requiring a minimum stroke length equal to their bore size.
