Standard bore sizes up to 12" with pressure ratings of 250 PSI for air and up to 1500 PSI for medium duty hydraulic. All Higginson cylinders are available with non-standard options such as stainless steel, high-temp seals or use with exotic fluids. We offer all NFPA mounts in addition to custom mounts, which we proudly manufacture in one of the industry's quickest lead times.
1.5” to 12” Bore Series
Flange mounted cylinders are mounted via square or rectangular flanges attached to the head or cap. Flange mounts ensure the thrust force of the cylinder remains in the centre of the rod, as long as there is no rod misalignment.
Rectangular Head Flange Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. We recommend MF1 mounts are used in tension and mounted with flange face against machine support.

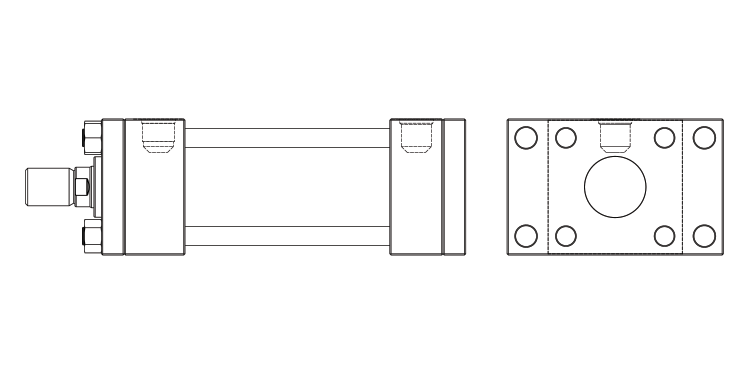

Rectangular Cap Flange Mount. Force is transferred in a straight line, and force is absorbed along the cylinder centreline. We recommend MF2 mounts are used in compression and mounted with flange face against machine support.
Square Head Flange Mount. Force is transferred in a straight line, and force is absorbed alone the cylinder centreline. MF5 mounts can be used at full pressure in either tension or compression applications.

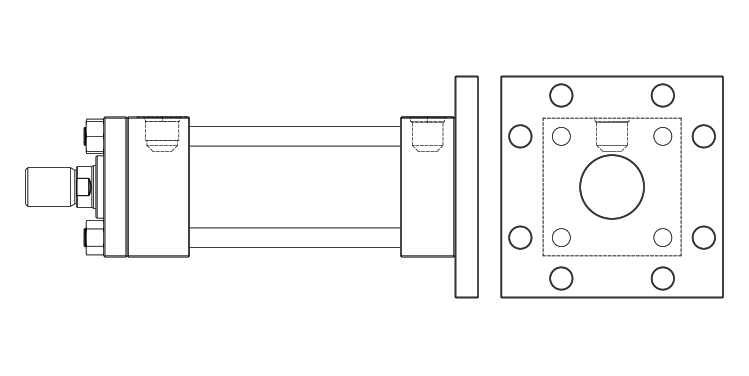

Square Cap Flange Mount. Force is transferred in a straight line, and force is absorbed alone the cylinder centreline. MF6 mounts can be used at full pressure in either tension or compression applications.
