Standard bore sizes up to 12" with pressure ratings of 250 PSI for air and up to 1500 PSI for medium duty hydraulic. All Higginson cylinders are available with non-standard options such as stainless steel, high-temp seals or use with exotic fluids. We offer all NFPA mounts in addition to custom mounts, which we proudly manufacture in one of the industry's quickest lead times.
1.5” to 12” Bore Series
Clevis & pivot mounted cylinders are required when a load must move through an arc. Clevis & pivot cylinders may need to be de-rated or used with stop tubes for long stroke applications, especially without a guided load.

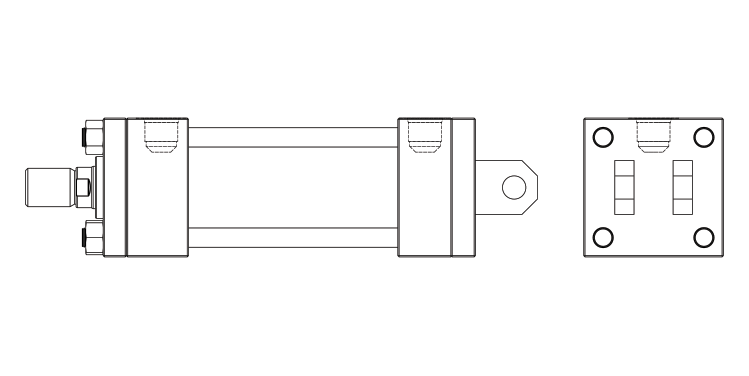

Fixed Cap Clevis Mount. Allows for changes in cylinder alignment. Forces are absorbed along cylinder centreline. A pivot pin of adequate strength must be used to resist shear load. On long stroke cylinders, oversized rod or stop tube may be required to prevent rod buckling.
Detachable Cap Clevis Mount. Allows for changes in cylinder alignment. Forces are absorbed along cylinder centreline. A pivot pin of adequate strength must be used to resist shear load. On long stroke cylinders, oversized rod or stop tube may be required to prevent rod buckling.
Not available for heavy duty hydraulic applications.

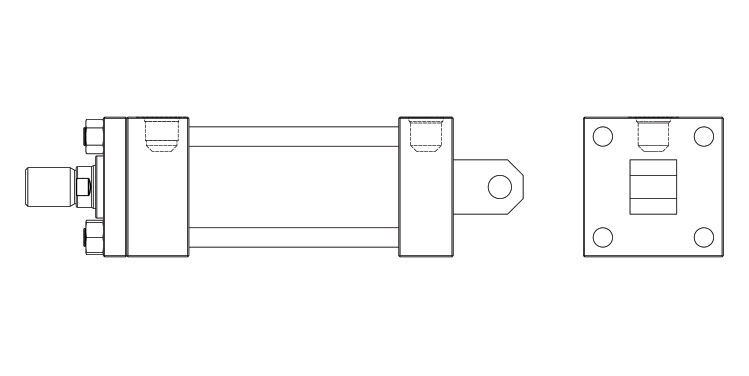

Fixed Cap Eye Mount. Allows for changes in cylinder alignment. Forces are absorbed along cylinder centreline. A pivot pin of adequate strength must be used to resist shear load. On long stroke cylinders, oversized rod or stop tube may be required to prevent rod buckling.
Not available for heavy duty hydraulic applications.
